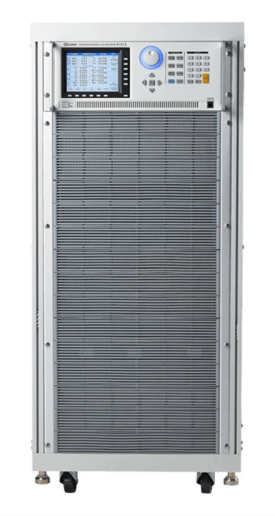

RENT Chroma 61611 AC Power Source (Call for availability)
Chroma 61611 AC power sources are able to provide highest power density by its advanced high speed PWM mode design. The modularized power stage design offer outstanding performance and high reliability. Units are capable of delivering single or three-phase output depending on the user's application. Chroma 61611 AC power sources have a built in 16-bit measurement circuit and firmware utilities to measure the true RMS voltage, current, true power, VA (apparent power), VAR (reactive power), power factor, current crest factor, peak repetitive current and inrush current.
Capable of simulating a wide range of AC line conditions, the Chroma 61611 AC power sources are ideal for commercial, power electronics, avionics, military and regulation test applications from bench-top R/D design verification, quality assurance to mass production. The 61611 AC sources are capable of delivering up to 4 times of peak current compared to its maximum rated current that makes it ideal for inrush current test. To simulate the natural waveform, the Chroma 61611 provides an external analog input to amplify the analog signal generated from arbitrary signal generator. The user friendly interface allows user quick access to its functions through large graphic LCD display front panel with clear indicated keypad.
Specifications of the Chroma 61611 AC Power Source includes:
AC Power | 12kVA (4kVA per phase) |
Voltage Low/High | 0-150V/0-300V |
Frequency | DC, 15-1500Hz |
Max Current Single/3-Phase | 96A/32A |
Power Factor | 0 to unity |
See Datasheet for Full Specifications
