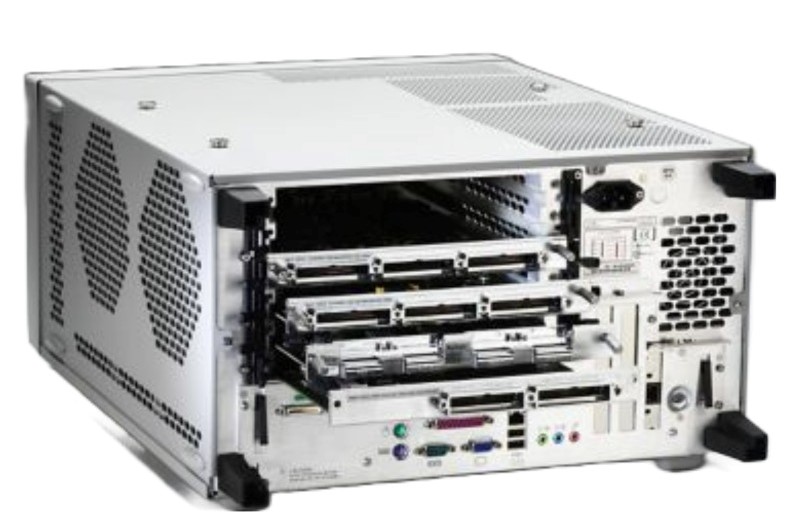

Agilent 16900A, Keysight 16900A, HP 16900A
Logic Analyzer Mainframe, 6 Slot
Logic Analyzers >> Logic Analyzer Mainframes >> Logic Analyzer Mainframe, 6 Slot
Manufacturer: Keysight / Agilent / HP
Model: 16900A
Model: 16900A
CLICK TO ENLARGE |
|
Download Product Datasheet
Product Overview
The Agilent 16900A logic analysis system provides high-performance, system-level debugging of digital designs. Expandability is the key to the system´s long-term value. Customize this system for your specific needs with innovative probing, high-performance measurement modules, and post-processing analysis tools.
Agilent 16900A Measurement Flexibility (Configuration)
- 6-slot modular system Mainframe/Measurement Module Compatibility Table
- Supports timing/state analyzers and pattern generator Measurement Modules
- PCI expansion slots: 1 full profile, 1 low profile
- Use frame individually or connect together for complex, multi-bus analysis E5861A Multiframe Cable
Agilent 16900A Logic Analyzer User Interface
- Uses external display
- Intuitive user interface and familiarity of Windows XP Pro
- Data views: waveform/chart, listing, packet viewer, source code, compare
- Keyboard and mouse supplied
Agilent 16900A Connectivity
- LAN: 10/100 BaseT (optional Gbit LAN) E5860A Gbit LAN Card
- I/O Ports: Two USB 1.1, parallel, serial, external video, calibration BNC, Clock in BNC
- Interface to other instruments: Trigger In/Out, Target control port
- View Scope integrates time-correlated logic analyzer & scope waveforms into single, waveform display
