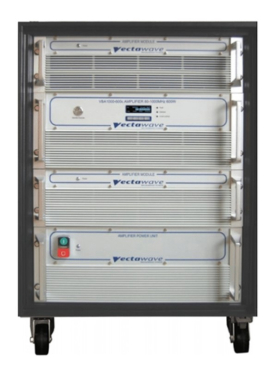

Vectawave VBA1000-600C
High Power Amplifier, 80 - 1000MHz, 600W
Amplifiers - RF and Microwave >> 1 GHz or Less and 101 Watt to 999 Watt >> High Power Amplifier, 80 - 1000MHz, 600W
Model: VBA1000-600C
|
Download Product Datasheet
Product Overview
RENT VECTAWAVE VBA1000-600C High Power Amplifier (Call for Availability)
The Vectawave VBA1000-600C is a high-power amplifier designed for EMC applications, operating within the 80-1000MHz range. It utilizes unique GaAs technology, offering high linearity, ruggedness, and efficiency. This class A amplifier excels in EMC applications due to its low distortion and tolerance of 100% mismatch, eliminating the need for fold-back protection. It is ideal for demanding antenna and test chamber requirements.
The Vectawave VBA1000-600C amplifier can be controlled via front panel or remote interfaces (Ethernet, USB, and GPIB). Its digital interface system manages power control, health monitoring, and communication with the control computer, while the keypad and display interface enable monitoring and configuration. With proven GaAs design and a focus on class A operation, it is a reliable choice for applications such as automotive testing and other linear power needs.
Specifications for the VECTAWAVE VBA1000-600C High Power Amplifier Include:
| Frequency Range | 80 to 1000 MHz |
| Rated Output Power | 600 W (80 MHz to 700 MHz) |
| Output Power Harmonics | Better than -20dBc @ 500 W |
| Output Impedence | 50 Ohms |
See Datasheet for full specifications
