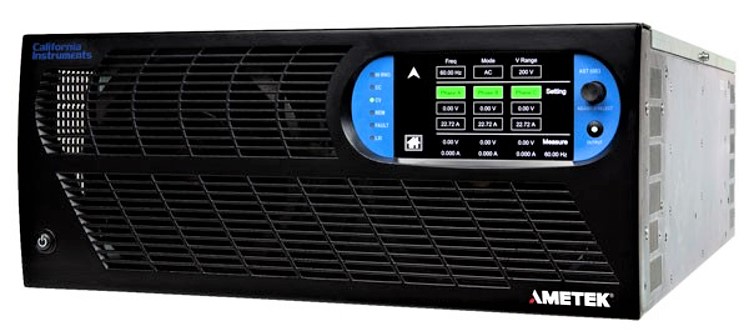

California Instruments AST6003
Asterion AC + DC Power Supply, 6000VA / 6000W, 1 or 3 Phase, (up to 400VAC)

Power Supplies >> AC Power Sources, More than 3kVA up to 10kVA >> Asterion AC + DC Power Supply, 6000VA / 6000W, 1 or 3 Phase, (up to 400VAC)





Download Product Datasheet

Available Option Configurations

Config-03

• AMD - Airbus AMD24 C (A400M)
• AVSTD - 160 (RTCA/DO160 E/F/G), 704 (MIL-STD 704 A/B/C/D/E/F), ABD (Airbus ADB100.1.8 D/E), A350 (Airbus ADB100.1.8.1 B/C)
• B787 - Boeing 787B3-0147 A/B/C (B787) SW
• GPIB - GPIB Interface
• MSRP: $34,734 | Available for Rental    GET QUOTE

Config-05

• AVSTD - 160 (RTCA/DO160 E/F/G), 704 (MIL-STD 704 A/B/C/D/E/F), ABD (Airbus ADB100.1.8 D/E), A350 (Airbus ADB100.1.8.1 B/C)
• GPIBCSW - GPIB Interface w/CSW Emulation
• HF - High Frequency up to 5,000 Hz
• MSRP: $32,559 | Available for Rental    GET QUOTE

Config-10

• AVSTD - 160 (RTCA/DO160 E/F/G), 704 (MIL-STD 704 A/B/C/D/E/F), ABD (Airbus ADB100.1.8 D/E), A350 (Airbus ADB100.1.8.1 B/C)
• GPIBCSW - GPIB Interface w/CSW Emulation
• MSRP: $31,354 | Available for Rental    GET QUOTE

Config-07

• No Options Included
• MSRP: $39,500 | Available for Rental    GET QUOTE

Config-11

• GPIB - GPIB Interface
• AVALL - includes AVSTD, B787, AMD
• C - 180-264VAC 3 Phase L-L Input (3-wire+ground)
• MSRP: $34,981 | Available for Rental    GET QUOTE

Product Overview

RENT CALIFORNIA INSTRUMENTS AST6003 AC/DC Power Supply (Call for Availability)



The California Instruments "Asterion" AST6003 AC power source by AMETEK Programmable Power combines intelligence and flexibility to create an advanced platform of AC solutions. This easy-to-configure design features sophisticated technology for delivering high performance, programmable AC and DC power. Its sleek design packs maximum power density into a low-profile form factor with an intuitive touch screen interface placing that power at your fingertips. Centralized control and unparalleled modularity make Asterion the most adaptable platform on the market. Its groundbreaking capabilities set the standard for affordable, precision power sources.

The Asterion AST6003 is Digital Signal Processor (DSP) controlled and can be operated from the intuitive, easy to use front panel touchscreen or the Ethernet LXI, USB and RS232 standard control interfaces, as well as through the optional GPIB control interface. Function selection and parameter entry can be achieved either by direct selection from the touchscreen or by using the encoder selector button. The control resolution is adjusted by a dynamic rate change algorithm that combines the benefits of precise control over small parameter changes with quick sweeps through the entire range. Centralized control and unparalleled modularity make Asterion AST6003 the most adaptable platform on the market. Its groundbreaking capabilities set the standard for affordable, precision power sources.



Specifications for the CALIFORNIA INSTRUMENTS AST6003 AC/DC Power Supply Include:

AC Power	6000VA
AC Voltage Range	0-200V/0-400V
DC Voltage Range	0-250V/0-500V
Frequency	DC, 16Hz - 1000Hz,  5000Hz optional



See Datasheet for full specifications
