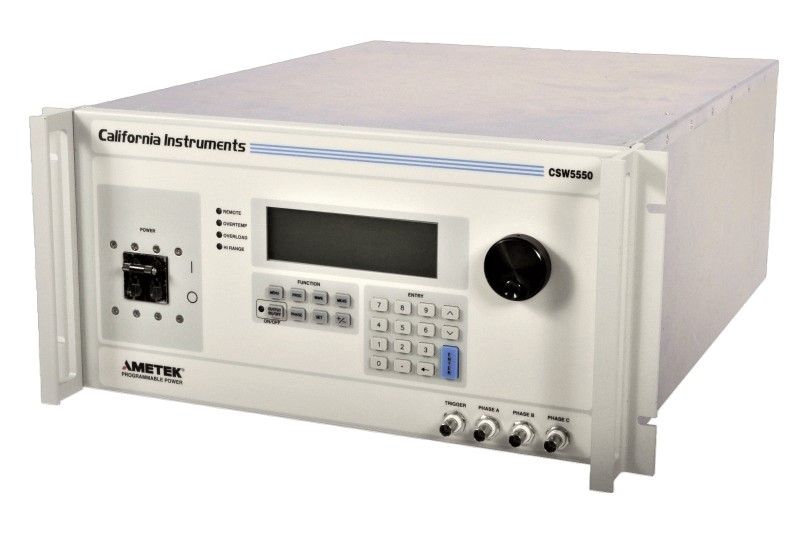

California Instruments CSW5550
AC/DC Power Source, 5500VA

Download Product Datasheet

Available Option Configurations

Config-01

• 208 - 187 to 264VRMS, 3 Phase L-L (3 wire)
• MSRP: $42,616 | In Stock!    GET QUOTE

Config-08

• 160 - RTCA/DO-160D, Change 2, EuroCAE-14D and Airbus test firmware
• 208 - 187 to 264VRMS, 3 Phase L-L (3 wire)
• 704A-F - Mil-Std 704 rev D and E test firmware
• A350 - Airbus A350 tests
• ABD - Airbus Directive 0100.1.8 tests
• B787 - Boeing 787B3-0147 tests
• LAN - LXI Ethernet LAN Interface (RJ45 Connector)
• MSRP: $66,893 | In Stock!    GET QUOTE

Config-09

• 1399 - MIL-STD 1300-300 Test, Rev. B.
• 208 - 187-264 Volt Line to Line AC input, 3 Phase (3 Wire)
• A350 - Airbus A350 tests
• ABD - Airbus Directive 0100.1.8 tests
• ELF - Extra Low Frequency (2 Hz)
• 400 - 342-457 Volt Line to Line AC input, 3 Phase (4 Wire)
• 411 - IEC61000-4-11 test firmware
• 413 - IEC61000-4-13 Harmonics and Interharmonics test firmware and hardware
• HF - High Frequency (7990 Hz)
• 160 - RTCA/DO-160D, Change 2, EuroCAE-14D and Airbus test firmware
• AIRB - Airbus ABD0100.1.8, AMD 24 and A350 combination test software suite
• LF - Limits output frequency to 500 Hz
• LKS - Clock/Lock Auxiliary
• RMS - Rackmount Slides
• WHM - Watt-Hour Measurement option
• 704A-F - Mil-Std 704 rev A through F Test Software
• AMD - Airbus AMD24 tests
• B787 - Boeing 787B3-0147 tests
• C PREFIX - Cabinet System. Installed and pre-wired in 19 cabinet.
• LAN - LXI Ethernet LAN Interface (RJ45 Connector)
• LKM - Clock/Lock Master
• MSRP: $128,823 | Available for Rental    GET QUOTE

Product Overview

RENT California Instruments CSW5550 AC Power Source

    By combining a flexible AC/DC power source with a high performance power analyzer, the California Instruments CSW5550 is capable of handling complex applications that have traditionally required multiple systems.  All connections are made internally and the need for digital multimeters, power harmonics analyzers, and current shunts or clamps is eliminated. The California Instruments CSW5550 AC power source is designed for testing today’s complex electronics, including avionics, telecommunications and commercial electronics requiring low profile, light weight power supplies.

    The CSW5550 AC power source is based on a 5,550VA power source and features selectable Single or Three Phase output via front panel menu selection or via remote control interface. A direct coupled, transformerless design allows AC and DC on separate phases or on the same phase. The California Instruments CSW5550 can be used as a true DC power supply and has a powerful AC and DC transient generation system that allows complex sequences of voltage, frequency and waveshapes to be generated. Since many components in the CSW5550 are shared between the AC/DC source and the power analyzer, the total cost of the integrated system is less than the typical cost of a multiple unit system.

Specifications of the California Instruments CSW5550 AC Power Source includes:

See Datasheet for Full Specifications
