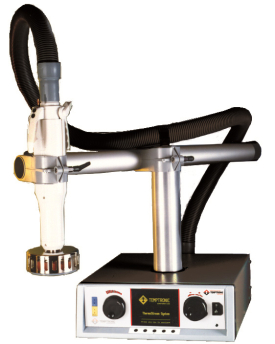

InTest - Temptronic ATS-605
ThermoStream Thermal Inducing System, -20 to +225C

Download Product Datasheet

Product Overview

TEMPTRONIC THERMOSTREAM ATS-605

The ThermoStream ATS-605 offers convenient thermal testing on your benchtop. The InTest ATS-505 Thermal Inducing System is an advanced Temperature Source built  for fast and precise thermal conditioning of components, parts, hybrids, modules, subassemblies, and printed circuit boards. Capable of ultra-low temperatures without the use of Liquid Nitrogen (LN2 ) or Liquid Carbon Dioxide (LCO2 ).

Features of The Thermostream ATS-605 include:

• Temperature range is -20°C to +225°C.
• Airflow Rate: 4 to 10 scfm (1.9 to 4.7 l/s) Continuous
• No  LN₂ or LCO₂ required!
• Intuitive, user-friendly menu control
• Temperature Control:
• +/- 0.1°C
• Temperature Accuracy:
• 1.0°C (when calibrated against NIST standard)
• DUT Temperature Control
• proprietary control algorithm enables DUT temperature to be directly controlled
• DUT Sensor Ports
• DUT Sensor Ports
• DUT Sensor Ports
• Thermocouples (type T & K)
• Customizable and savable test setups
• Program & Datalog Storage
• User Deened Temperature Limits
• Local & Remote Operations
• LabViewTM drivers
• IEEE-488, RS232 ports
• Thermal cap: 3.9 or 5.5 inch ID Thermal Cap
• AC Input: 115VAC, 60 Hz, 15A, 1 phase or 230VAC, 60 Hz, 10A
