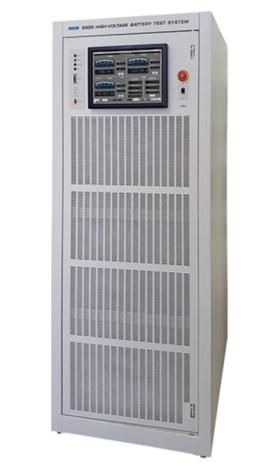

NH Research 9300-200
High Voltage Battery Test System, Regenerative, 200kW

Download Product Datasheet

Product Overview

RENT NH RESEARCH 9300-200 High Voltage Battery Test System (Call for Availability)

The NH Research / NHR 9300-200 Battery Charge / Discharge Cycler Test System is a fast-acting, fully programmable, and bidirectional DC source (charge) that provides reversible current flow in order to act as a regenerative DC load (discharge). Both modes support any combination of constant power, constant voltage, and constant-current regulation limits. Products tested include batteries, fuel cells, ultra-capacitors, and other energy storage devices used in the automotive, aviation, heavy industrial, marine, grid storage, university research, and standards certification laboratory markets. The most frequent uses are for battery charge/discharge cycling, testing battery chargers and battery emulation.

The basic NH Research (NHR) 9300-200 has a Touch-Panel that controls and displays voltage, current, power along with other settings, limits and test status. The Touch-Panel provides the ability to create, run, monitor, chart and report UUT charge/discharge profiles without writing any code. This makes the 9300-200 ideal for engineering development and trouble-shooting UUTs. The second control choice is the Enerchron® Test Executive, described below, which would be run on an external PC. This is the best choice for more extensive and longer term tests where substantial data collection is necessary. The third option is where the user can utilize their own system controller and test software to communicate to the 9300-200 through LabVIEW or another IVI-compliant programming language.

Specifications for the NH RESEARCH 9300-200 High Voltage Battery Test System Include:

See Datasheet for full specifications
