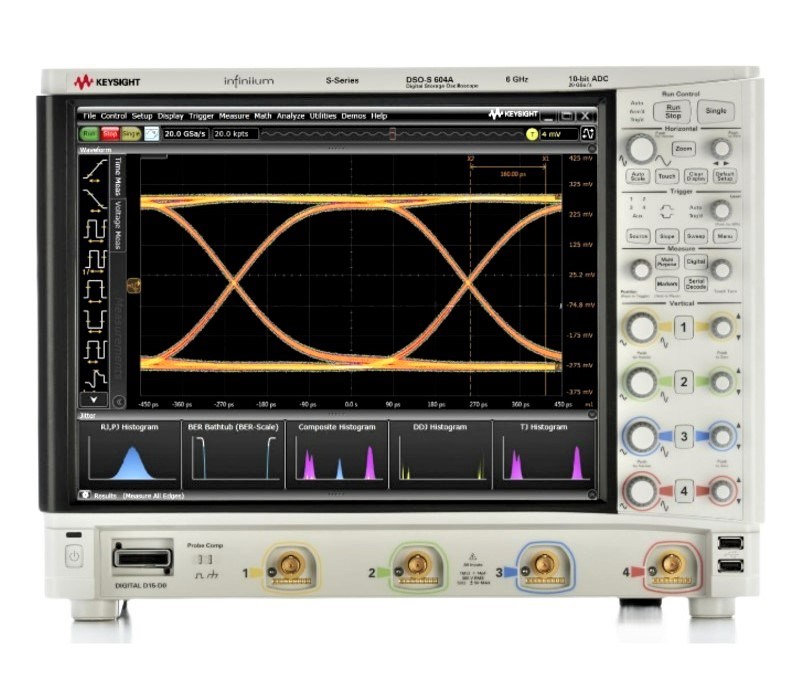

Agilent DSOS604A, Keysight DSOS604A, HP DSOS604A
High-Definition Oscilloscope, 6 GHz, 4 Ch., 20 GS/s

Download Product Datasheet

Product Overview

RENT KEYSIGHT / AGILENT DSOS604A High-Definition Oscilloscope (Call for Availability)

The Keysight DSOS604A S-Series Oscilloscope provides a superior time base, front-end, and ADC technology blocks. This gives you a platform with up to 16 bits of resolution, low noise, low jitter, and high ENOB – giving you visibility into the true performance of your device. The heart of the oscilloscope is a 20-layer acquisition board with 16 custom ASICs and FPGAs. New technology blocks deliver superior signal integrity. A high-resolution ADC’s usefulness is dependent on the low-noise front end that supports the additional quantization levels. Each Keysight DSOS604A oscilloscope incorporates the industry’s lowest noise front end for portable oscilloscopes.

S-Series oscilloscopes are built with an advanced FPGA dedicated for fast and precise signal processing. The technology produces the fastest deep memory responsiveness in the industry and provides additional hardware filtering for superior measurements. With standard 100 Mpts/channel on all four channels simultaneously, and up to 820 Mpts/ch optional, capture long time periods while retaining fast sample rates. With a built-in spectral viewer, controls, gated FFTs, 10-bit ADCs, and excellent SFDR values, the Keysight DSOS604A S-Series oscilloscopes provide an excellent scope platform for FFT measurements.

Specifications for the KEYSIGHT / AGILENT DSOS604A High-Definition Oscilloscope Include:

See Datasheet for full specifications

Click to see all the models in this series
