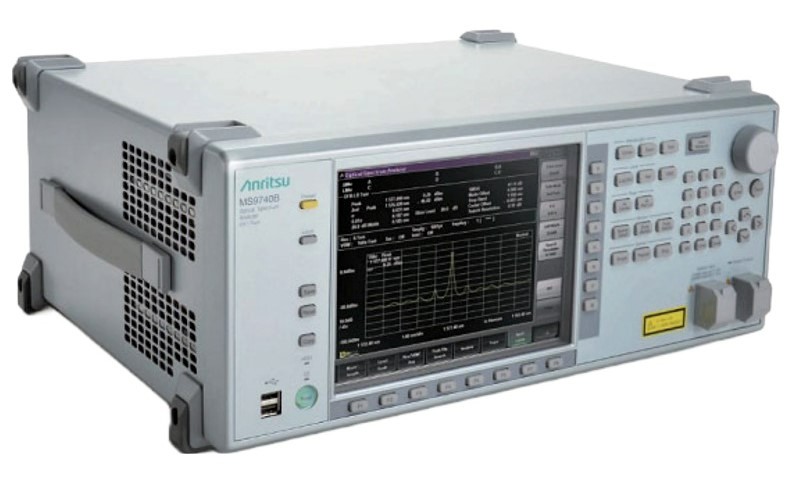

Anritsu MS9740B
Optical Spectrum Analyzer, 600nm - 1750nm

Optical and Lightwave >> Optical Spectrum Analyzers (OSA) >> Optical Spectrum Analyzer, 600nm - 1750nm
Rent Used Test Equipment
Manufacturer: Anritsu
Model: MS9740B

Anritsu MS9740B Optical Spectrum Analyzer, 600nm - 1750nm

Electronic Test and Measurement Equipment

Anritsu MS9740B Optical Spectrum Analyzer, 600nm - 1750nm Product Datasheet Download Product Datasheet

Rent Test Equipment

Available Option Configurations

Config-01

  • 001 - GPIB Interface
  • 002 - Lightsource for Wavelength Calibration
  • 037 - FC Connector
  • MSRP: $30,664 | In Stock!    GET QUOTE

Product Overview

RENT ANRITSU MS9740B Optical Spectrum Analyzer (Call for Availability)



The Anritsu MS9740B benchtop Optical Spectrum Analyzer features wide dynamic range, high resolution, and fast sweep speeds over a wavelength range of 600 nm to 1750 nm. It supports multimode fiber input and is ideal for manufacturing and evaluating 850-nm band VCSEL modules. Moreover, it retains optical active device (LD-Module, DF-LD, FP-LD, LED, PMD, WDM, Opt Amp, and WDM Filter) measurement menu screens for evaluating devices. It supports all-at-once measurements of key evaluation items, such as optical center wavelength, level, OSNR, spectrum width, etc., and displays these results at one screen.

With a built-in Fast mode, the Anritsu MS9740B supports both a wide dynamic range and high-speed measurement at Rx optical bandwidths (200 Hz and 1 kHz) used most commonly by optical-device production lines. At the same Rx optical bandwidth setting, it retains the same measurement sensitivity as its MS9740A predecessor while cutting measurement times by 50% for better production efficiency. The 42 dB dynamic range at 0.2 nm from the peak wavelength supports accurate WDM signal measurement at 100 and 50-GHz intervals. Up to 300 channels can be evaluated and data required for WDM signal analysis, such as center wavelength, level, SNR, etc., are displayed on one screen. The Anritsu MS9740B calculates the gain and NF automatically from the optical input and output to the optical fiber amplifier. It supports two EDFA measurement applications: Opt. Amp (Multi-channel) for WDM signals and the latest IEC standards.



Specifications for the ANRITSU MS9740B Optical Spectrum Analyzer Include:

Wavelength measurement range   600 nm to 1750 nm
Maximum input power +23 dBm (Optical ATT: On)
Setting resolution 0.03, 0.05, 0.07, 0.1, 0.2, 0.5, 1.0 nm
Wavelength Stability ±5 pm (1 min, smoothing: 11 pt, at center wavelength of half maximum, Using SM fiber)



See Datasheet for full specifications
