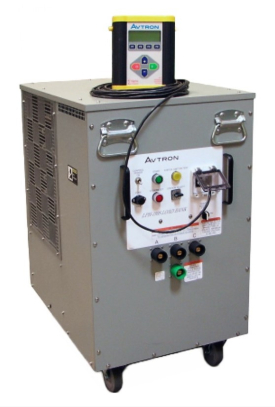

Avtron LPH150S
Portable AC Resitive Load Bank, 150kW with Digital Metering

Download Product Datasheet

Product Overview

RENT AVTRON LPH150S (LPH-150S) FREEDOM PORTABLE AC LOAD BANK (Call for availability)

    The Avtron LPH150S Portable AC Load Bank is ideal for routine testing and maintenance of AC power sources such as stand-by emergency generators and UPS systems. Designed for continuous operation, this AC load bank gives users a high capacity load in a  lightweight and ultra compact package.  Quick-connect load terminals and simple operation allow the Avtron LPH150S load bank to be set up and operated by a single technician, saving valuable time in the field.

    The entire control of the Avtron LPH150S portable AC load bank is via the Intelligent Hand-Held Terminal (IHT) which provides all control and metering functions along with network capability to control multiple load banks.  Controls and cooling fans are powered by any standard 120 VAC, single phase wall outlet with detachable line cord provided.  This Avtron LPH150S portable load bank provides a full 150 KW at 480 VAC or 240 VAC, 3 Phase, 60 Hz.  Main line circuit fusing, wrong voltage protection (Dual Voltage model only), and overtemperature protection come standard in the Avtron LPH150S portable load bank.

Specifications for the Avtron LPH150S Portable AC load bank include:

See Datasheet for full specifications
