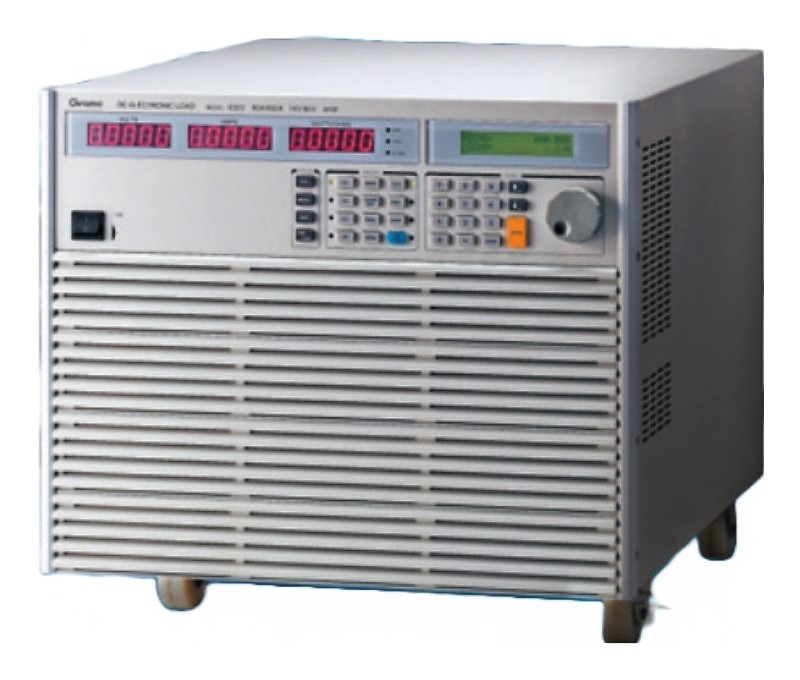

Chroma 63204
DC Electronic Load, 5200W, 100A, 500V (or 600V)

Download Product Datasheet

Available Option Configurations

Config-01

• No Options Included
• In Stock!    GET QUOTE

Config-02

• A632007 - 600V
• Available for Rental    GET QUOTE

Product Overview

RENT CHROMA 63204 High Power DC Electronic Load

    The Chroma 63204 series of programmable electronic loads are designed for a wide variety of dc power conversion products including DC power sources, battery chargers, server power supplies, dc-dc converters, batteries and many others.  Especially well-suited for high power applications, the Chroma 63204 DC loads have a built-in 15-bit precision A/D converter that can achieve 0.05%+0.05% F.S., 0.1%+0.1% F.S. and 0.3%+0.3% F.S. accuracy for voltage, current, and power measurements respectively.

    Chroma's 63204 High Power Electronic DC Loads provide a unique surge load simulation capability.  This feature is ideal when the average power required by the UUT is low compared to short-term peak power demands. It also offers outstanding high speed, programmable dynamic load simulation and control capabilities in constant current, constant resistance, constant voltage and constant power modes. When higher power is required, it is common to parallel two electronic loads together to draw higher current.  With four different load modes, the Chroma 63204 DC electronic loads are capable of testing many different DC output power supplies either directly or via a rectifier. They can also be used to test AC output power supplies.

Specifications for the Chroma 63204 High Power DC Electronic load include:

See Datasheet for full specifications

Other models is this series are 63201, 63202, 63203, 63205, 63206, 63207, 63208, 63209, 63210, 63211, 63212.
