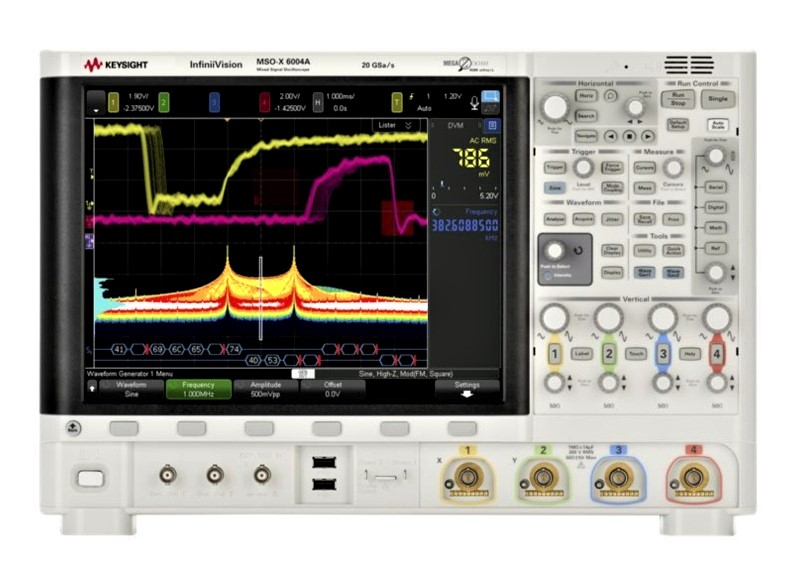

Agilent MSOX6004A, Keysight MSOX6004A, HP MSOX6004A
Mixed Signal Oscilloscope, 1 GHz up to 6 GHz, 4+16 Ch., 20 GS/s

Download Product Datasheet

Available Option Configurations

Config-04

• DSOX6APPBNDL - Application Bundle for InfiniiVision 6000 X-Series Oscilloscopes
• DSOX6B10T604BW - Oscilloscope Bandwidth Upgrade: 1 GHz to 6 GHz
• DSOX6PWR - Power Measurements for InfiniiVision 6000 X-Series Oscilloscopes
• DSOX6UPD - USB Power Delivery (USB PD) Triggering and Analysis for the 6000 X-Series
• DSOX6USBFL - Low- and Full-speed USB 2.0 Trigger/Analysis for the InfiniiVision 6000 X-Series
• DSOX6USBSQ - USB 2.0 Signal Quality Test Option for InfiniiVision 6000 X-Series Oscilloscopes
• DSOX6VID - Video Trigger/Analysis Application for the InfiniiVision 6000 X-Series Oscilloscopes
• DSOX6WAVEGEN2 - WaveGen Built-in Dual-chan Function and Arbitrary Waveform Generator for 6000 X-Series
• DSOX6AUTO - Automotive Serial Trigger/Analysis (CAN, CAN-dbc, LIN) for InfiniiVision 6000 X-Series
• DSOX6B10T254BW - Oscilloscope Bandwidth Upgrade: 1 GHz to 2.5 GHz
• DSOX6COMP - Computer Serial Trigger/Analysis (RS232/UART) for InfiniiVision 6000 X-Series Oscilloscope
• DSOX6CXPI - CXPI (Clock Extension Peripheral Interface) Triggering and Analysis for 6000 X-Series
• DSOX6FRA - Frequency Response Analysis (FRA) for InfiniiVision 6000 X-Series Oscilloscopes
• DSOX6JITTER - Jitter Analysis for InfiniiVision 6000 X-Series Oscilloscopes
• DSOX6MASK - Mask Limit Testing Application for InfiniiVision 6000 X-Series Oscilloscopes
• DSOX6NRZ - User-definable Manchester and NRZ Trigger and Decode for 6000 X-Series Oscilloscopes
• DSOX6B10T404BW - Oscilloscope Bandwidth Upgrade: 1 GHz to 4 GHz
• DSOX6SENSOR - SENT (Single Edge Nibble Transmission) Triggering and Analysis for 6000 X-Series
• DSOX6AERO - A/D Serial Trigger/Analysis (MIL-STD 1553/ARINC 429) for InfiniiVision 6000 X-Series
• DSOX6FLEX - FlexRay Trigger/Analysis for the InfiniiVision 6000 X-Series Oscilloscopes
• DSOX6USBH - Hi-speed USB 2.0 Trigger/Analysis for the InfiniiVision 6000 X-Series Oscilloscopes
• MSRP: $112,458 | Available for Rental    GET QUOTE

Product Overview

RENT KEYSIGHT / AGILENT MSOX6004A Mixed Signal Oscilloscope (Call for Availability)

The Keysight InfiniiVision MSOX6004A oscilloscopes are designed for the most demanding engineers who want bandwidth, visualization power and the flexibility that comes with integrated capabilities — but with portability, and a familiar embedded OS user interface.  The MSOX6004A delivers the answer with an affordable 6-GHz bandwidth and an incredibly low noise floor of 210 µVrms at 1 mV/div to help you make the most accurate measurements. See your waveforms clearly on the large 12.1-inch display and discover how easy it is to troubleshoot your designs with a multi-touch screen with gesture controls.

With the ultrafast 450,000 waveforms-per-second update rate, the InfiniiVision MSOX6004A gives you the highest probability of capturing random and infrequent events that you would miss on oscilloscopes with lower waveform update rates.  The MSOX6004A with the DSOX6JITTER option focuses on real-time debugging for your everyday jitter analysis. There is a standard built-in 3-digit voltmeter (DVM) on the Keysight MSOX6004A oscilloscope. The voltmeter operates through the same probes as the oscilloscope channels. However, the DVM measurements are made independently from the oscilloscope acquisition and triggering system so you can make both the DVM and triggered oscilloscope waveform captures with the same connection.

Specifications for the KEYSIGHT / AGILENT MSOX6004A Mixed Signal Oscilloscope Include:

See Datasheet for full specifications
