Rent or Buy Chroma 63212A-1200-480 High Power DC Electronic Load, 1200V, 480A, 12kW



Tektronix Encore

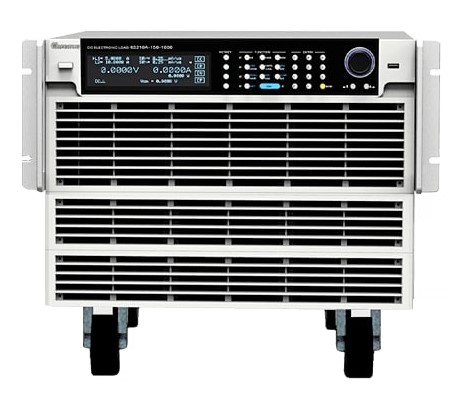

Chroma 63212A-1200-480
High Power DC Electronic Load, 1200V, 480A, 12kW

Electronic Loads >> DC Electronic Loads, More than 10 kW >> High Power DC Electronic Load, 1200V, 480A, 12kW
Rent Used Test Equipment
Manufacturer: Chroma
Model: 63212A-1200-480

Chroma 63212A-1200-480 High Power DC Electronic Load, 1200V, 480A, 12kW

Electronic Test and Measurement Equipment

Chroma 63212A-1200-480 High Power DC Electronic Load, 1200V, 480A, 12kW Product Datasheet Download Product Datasheet

Rent Test Equipment

Available Option Configurations

Config-01

  • A636000 - GPIB Interface
  • Available for Rental    GET QUOTE

Config-03

  • No Options Included
  • Available for Rental    GET QUOTE

Product Overview

RENT CHROMA 63212A-1200-480 Programmable DC Electronic Load (Call for availability)



    The 63212A series high power DC electronic loads are designed for testing a wide range of products including AC/DC and server power supplies, DC/DC converters, EV batteries, automotive charging stations, and other power electronics components. Each model has 3 power ranges, they can precisely measure the voltage and current in real time. The Chroma 63212A-1200-480 DC load offers high speed, programmable dynamic loading (CCD: Dynamic Current Loading & CRD: Dynamic Resistance Loading) and sweep simulation for testing.

    The Chroma 63212A-1200-480 electronic DC loads operate in constant voltage, current, resistance, or power modes to satisfy a wide range of test requirements. A built-in highly precision A/D converter, achieving 0.015%+0.015%F.S., 0.04%+0.04%F.S. and 0.1%+0.1%F.S. accuracy for voltage, current and power measurement respectively. The unique CZ mode designed in the Chroma 63212A-1200-480 series can improve the loading behavior of CC & CP mode and makes the simulated loading current more realistic. In addition, the Chroma 63212A-1200-480 high power DC load also provides voltage peak measurement during actual loading conditions, avoiding the need for using an oscilloscope to capture the voltage peak, saving time and costs.



Specifications for the Chroma 63212A-1200-480 Programmable DC Electronic load include:

  Low Mid High
Voltage 0-1200V
Current 0-48A 0-240A 0-480A
Power 0-12000W
Min Operating Voltage 2V@48A 10V@240A 20V@480A



See Datasheet for full specifications
