Keithley 4200-SCS
Semiconductor Parameter Analyzer Characterization System

CLICK TO ENLARGE

Download Product Datasheet

Available Option Configurations

Config-13

• 4200-80 - Agilent LCR Option
• 4200-LC-LS-12/707B - Low Current Switch Matrix, 12 Outputs
• 4200-LC-LS-12/B - Low Current Switch Matrix 12 Outputs
• 4200-LC-LS-60/B - Low Current Switch Matrix 60 Outputs
• 4200-SCS-PK3 - High Resolution and Power IV & CV Bundled Characterization Solution
• 4200-TMB - Triaxial Mounting Bracket for Mounting 4200-PA on a Triaxial Mounting Panel
• 4205-RBT - Remote Bias Tee
• 4210-MMPC-C - High Performance Triaxial Cable Kit (for Use w/Cascade Microtech Probers)
• 4210-MMPC-S - High Performance Triaxial Cable Kit (for Use w/SUSS MicroTec Probers)
• 4225-PMU - Ultra-Fast I-V Module
• 4225-RPM - Remote Amplifier/Switch For The Model 4225-PMU
• 4X 4200-PA - Remote Pre-Amp (x4)
• 2X 4205 - Remote Bias Tee
• 2X 4225-PMU - Two Ultra-Fast I-V Module
• 2X 4225-RPM - Remote Amplifier/Switch For The Model 4225-PMU x2
• 3X 4200-PA - Remote Pre-Amp (x3)
• 42000-PDU - Power Distribution Unit
• 4200-CVU-PROBER-KIT - Prober Accessory Kit
• 4200-CVU-PWR - Power Package
• 4200-LC-LS-36/B - Low Current Switch Matrix 36 Outputs
• 4200-LC-LS-48/B - Low Current Switch Matrix 48 Outputs
• 4200-PMU-PROBER-KIT - 225-Pmu/4220-Pgu Smu/Interconnection Kit
• 4200-PRB-C - Two SSMC to SMA Cables w/Local Ground
• 4200-TRX-3 - Ultra Low-noise PreAmp Triax Cable w/3-slot Male Triax, 3m
• 4200-UL-LS-24/B - Ultra Low Current Switch Matrix 24 Outputs
• 4200-UL-LS-72/B - Ultra Low Current Switch Matrix 72 Outputs
• 4200-VAC-BASE - Vacuum Base for Mounting 4200-PA on a Prober Plate
• 4210-SMU - High Power Source-Measure Unit
• 4290-1 - Calibration System
• 4X 4200-SMU - Four 4200-SMU Medium Power SMU Cards
• ACS - ACS SW
• 2X 4210-SMU - Two Additional 4210-SMU High Power SMU Cards
• 3X 4200-SMU - Three 4200-SMU Medium Power SMU Cards
• 42000-EMO - Emergency Off Panel
• 4200-COMPILER - C/C++Compiler To Enable Kult
• 4200-LC-LS-24/B - Low Current Switch Matrix 24 Outputs
• 4200-MAG-BASE - Magnetic Base for Mounting 4200-PA on a Prober Platen
• 4200-PG2 - Dual-channel Pulse Generator Card
• 4200-PIV-A - Pulse-Iv Solution Bundle
• 4200-SCS-PK2 - High Resolution IV & CV Bundled Characterization Solution
• 4200-TRX-1 - Ultra Low-noise PreAmp Triax Cable w/3-slot Male Triax, 1m
• 4200-TRX-2 - Ultra Low-noise PreAmp Triax Cable w/3-slot Male Triax, 2m
• 4200-UL-LS-12/B - Ultra Low Current Switch Matrix 12 Outputs
• 4200-UL-LS-48/B - Ultra Low Current Switch Matrix 48 Outputs
• 4200-UL-LS-60/B - Ultra Low Current Switch Matrix 60 Outputs
• 4200-ZY - Zyvex 4200 System
• 4205-VPU - Voltage Pulse Unit
• 4210-CVU - Capacitance Voltage Unit 1 KHz-10 MHz
• 4220-PGU - Dual Channel Pulse Generator
• 8101-PIV - Test Fixture
• 1X 4200-SMU - One 4200-SMU Medium Power SMU Cards
• 2X 4200-PA - Remote Pre-Amp (x2)
• 2X 4200-SMU - Two 4200-SMU Medium Power SMU Cards
• 4200-BTI-A - ltra-Fast NBTI/PBTI Package
• 4200-CRT - 17 inch VGA Monitor
• 4200-LC-LS-72/B - Low Current Switch Matrix 72 Outputs
• 4200-MTRX-3 - 3m Ultra Low Noise SMU Triax Cable w/Mini Male Triax & 3-Slot Male Triax
• 4200-PA - Remote Preamp
• 4200-SCP2 - Dual Channel DSO
• 4200-SCP2-ACC - Dual Channel DSO Accy Pack
• 4200-SCP2HR - Dual Channel DSO Hi Resolution
• 4200-SCS-PK1 - High Resolution IV Bundled Characterization Solution
• 4200-SMU - Medium Power Source-Measure Unit
• 4200-UL-LS-12/707B - Ultra Low Current Switch Matrix 12 Outputs
• 4200-UL-LS-36/B - Ultra Low Current Switch Matrix 36 Outputs
• 4205-PG2 - Dual-channel Pulse Generator Card
• 4290-2 - 2 Channel Low Current Calibration System
• 5X 4200-PA - Remote Pre-Amp (x5)
• MSRP: $1,199,770 | Available for Rental    GET QUOTE

Product Overview

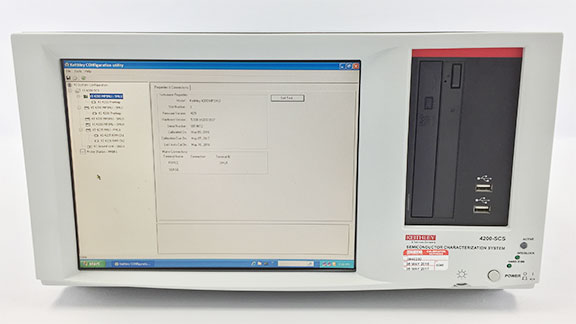

KEITHLEY 4200-SCS

The Keithley 4200-SCS Semiconductor Characterization System performs lab grade DC and pulse device characterization, real-time plotting, and analysis with high precision and sub-fem to amp resolution. The Keithley 4200-SCS offers the most advanced capabilities available in a fully integrated characterization system, including a complete, embedded PC with Windows operating system and mass storage. Its self-documenting, point-and-click interface speeds and simplifies the process of taking data, so users can begin analyzing their results sooner. Additional features enable stress-measure capabilities suitable for a variety of reliability tests as well as provide precision measurement and high resolution with LCR meter support.

Features of the Keithley 4200 system include:

• Intuitive, point-and-click Windows®-based environment
• Unique Remote PreAmps extend the resolution of SMUs to 0.1fA
• C-V instrument makes C-V measurements as easy as DC I-V
• Pulse and pulse I-V capabilities for advanced semiconductor testing
• Scope card provides integrated scope and pulse measure functionality
• Self-contained PC provides fast test setup, powerful data analysis, graphing and printing, and on-board mass storage of test results
• Unique browser-style Project Navigator organizes tests by device type, allows access to multiple tests, and provides test sequencing and looping control
• Built-in stress/measure, looping, and data analysis for point-and-click reliability testing, including five JEDEC compliant sample tests
• Integrated support for a variety of LCR meters, Keithley switch matrix configurations, and both Keithley Series 3400 and Agilent 81110 pulse generators
• Includes software drivers for leading analytical probers
